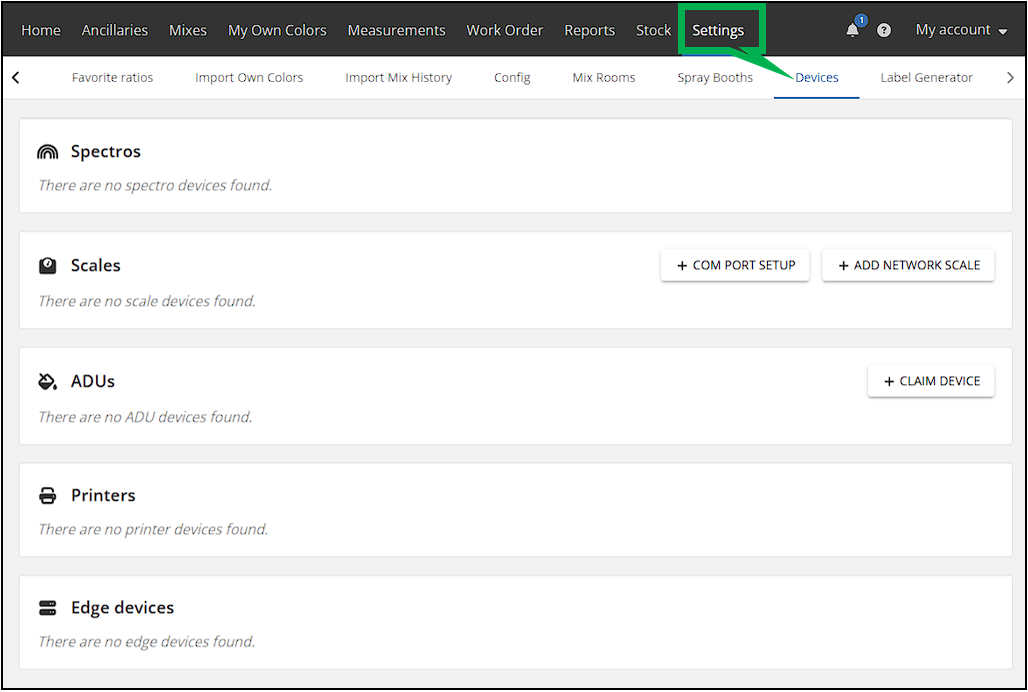

The Devices page can be opened by navigating to Settings > Devices. This opens a window displaying an overview of all devices connected to your PC. In the picture below, you can see that no devices are connected:
Spectros
To add a spectrophotometer to MIXIT, follow the steps described in this article:
Connect the Spectrophotometer via USB or Wi-Fi – MIXIT Help Center

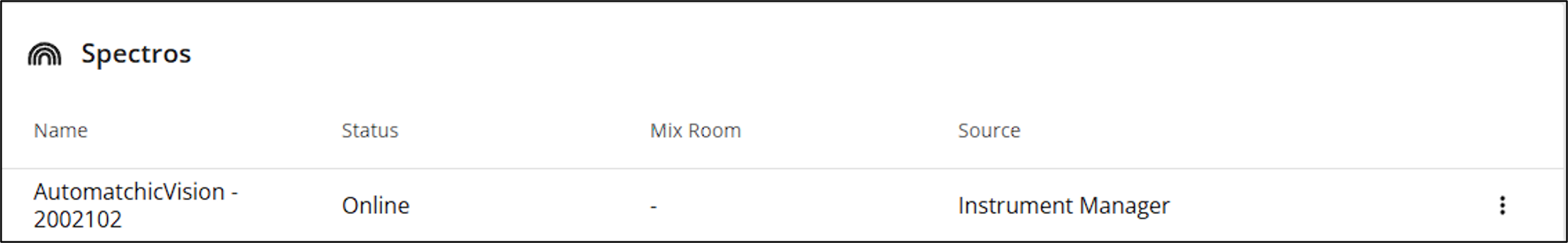

Once this is done, the spectrophotometer will appear in Devices:
Scales
To add a PMA Evolution, follow the steps described in this article:
Connect a PMA Evolution weighing scale – MIXIT Help Center
Once this is done, the PMA Evolution will appear in Devices:
You can change the COM port settings for the PMA Evolution in the Devices tab. Simply click on

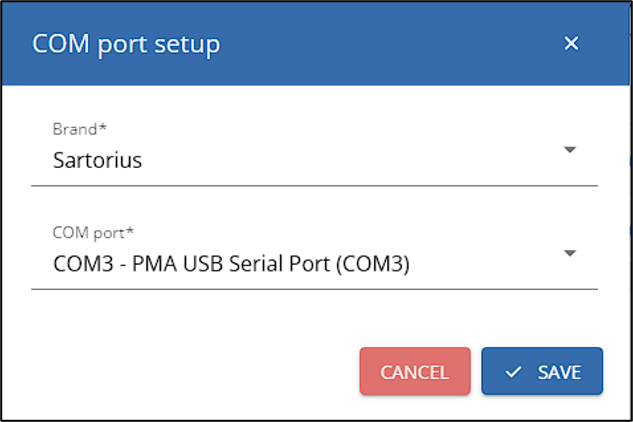

This opens a window where you can select or change the COM port:
To add a PMA Vision, follow the steps described in this article:
Connect a PMA Vision weighing scale – MIXIT Help Center

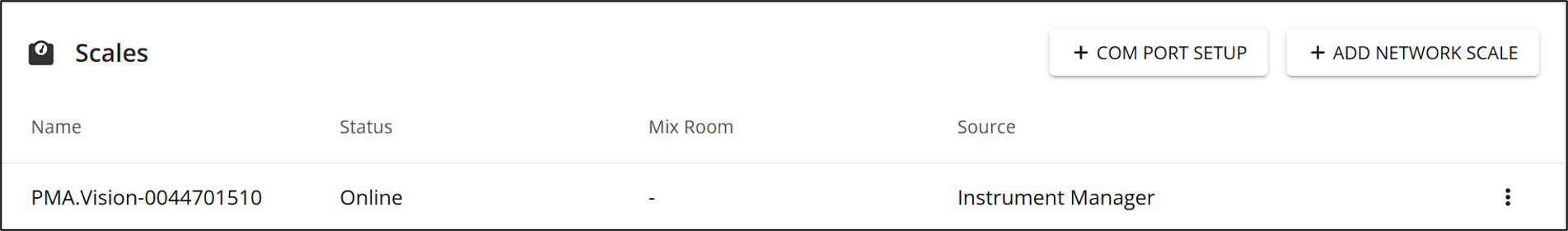

Once this is done, the PMA Vision will appear in Devices:

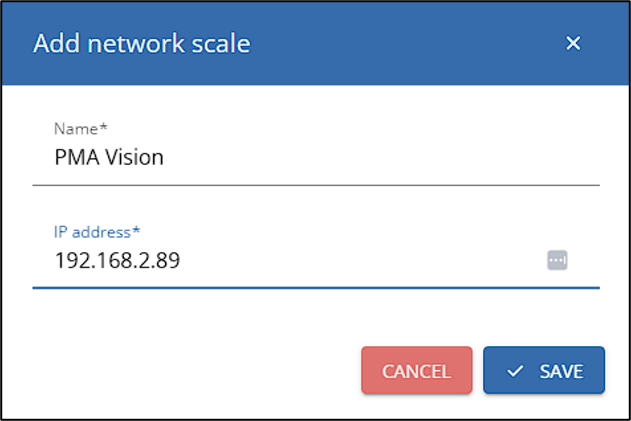

To add a network scale, click on . This opens a window where you can enter the device name and IP address. After clicking Save, the scale will be added to Devices.
ADUs
To connect an ADU, follow the steps described in this article:
Setup Colormatchic with MIXIT – MIXIT Help Center

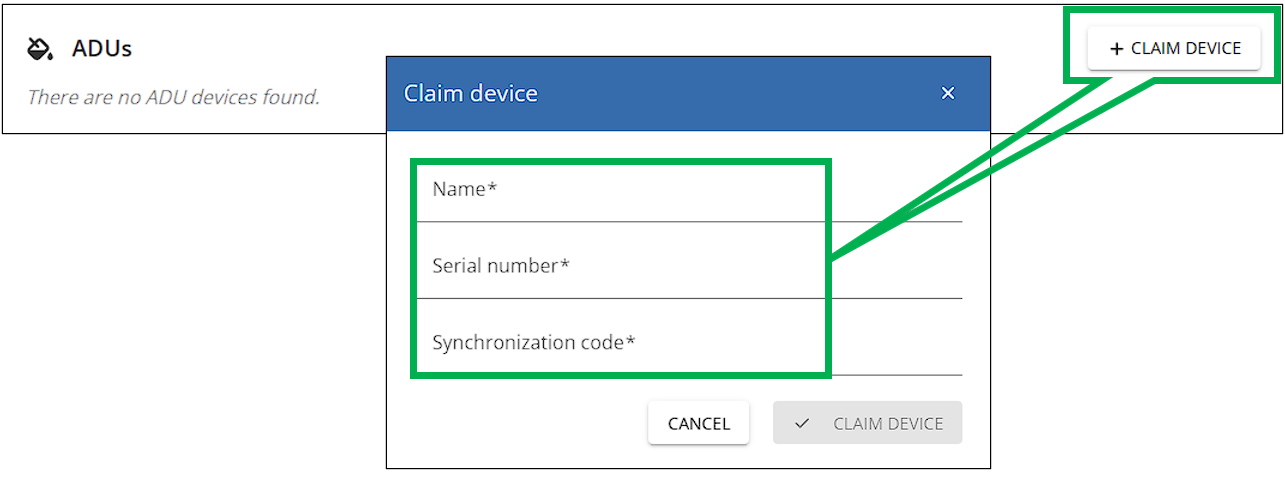

To claim the ADU, click on and enter the required information.
Printers

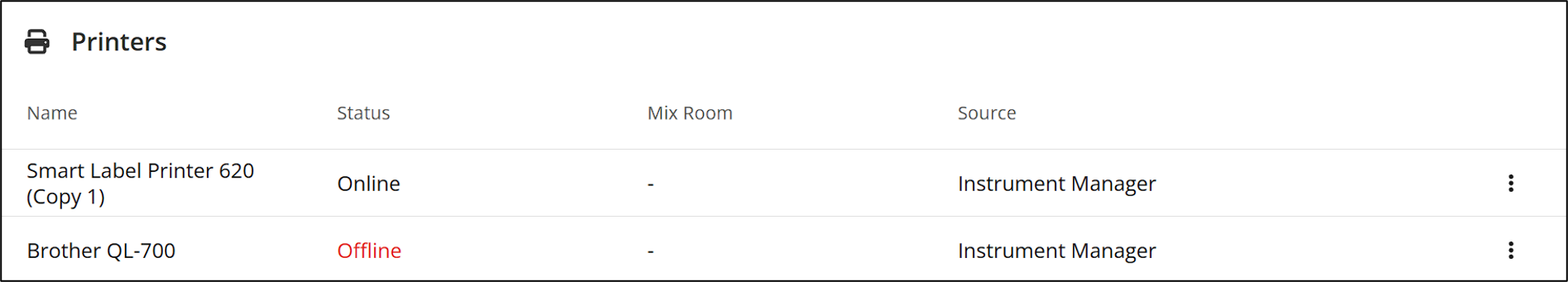

To connect a printer, follow the instructions provided by the printer supplier. After installing the drivers and selecting the printer in Instrument Manager, the printer will appear in Devices.
Edge Device
This feature is not yet available.
