In this article we will explain how a PMA Vision can be configured in the Instrument Manager.
A PMA Vision that is connected to the Instrument Manager will be available for selection in the MIXIT application when you want to start a mix.
When the PMA Vision is properly connected it will display as a connected device in the Instrument Manager.
Open Instrument Manager and make sure to pin it, so that it will not automatically close.

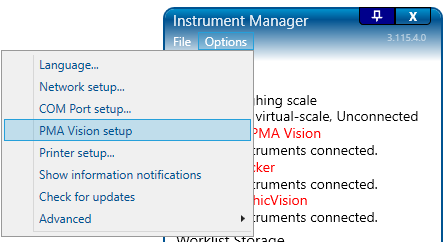

If it's the first PMA Vision that you would like to connect, navigate to Options > PMA Vision setup

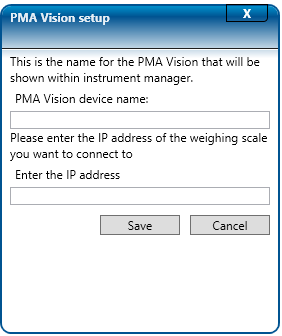

In the window that appears, you can choose a name or description. The name or description that you choose is what will appear in the MIXIT application when you would like to start a mix. When connecting multiple scales the name will help you distinguish the scales easily.
Next, also type in the IP address of the scale. If you don't know the ip, refer to the instruction manual of the PMA Vision for clear instructions on how to retrieve the IP address.
Press Save to store the settings and start using the PMA Vision in MIXIT.
