USB Connection

1. Login with Mixit: Sign in to Mixit
2. Download and open Instrument Manager: Instrument Manager Download Link

3. Download the Instrument Manager Driver from: Instrument Manager Driver Download
4. Download and install the appropriate drivers:
• For AM3: All Automatchic3 FTDI drivers pack
• For AMV: AutomatchicVision Driver 32 and 64 bits
• For AMV2: AutomatchicVision2 Driver 32 and 64 bits
5. Connect the Spectrophotometer using a USB cable.

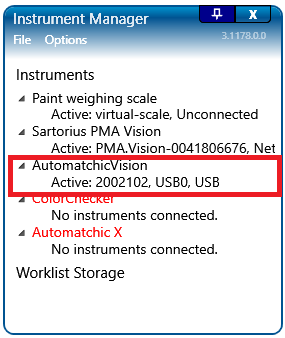

6. Ensure the Spectrophotometer is listed in the Instrument Manager and is active.

7. The Spectrophotometer is now ready to use.

Wi-Fi Connection

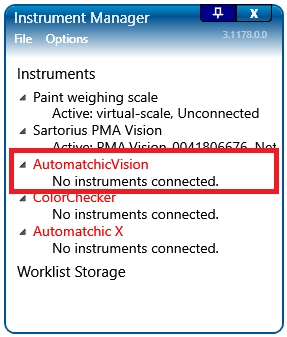

1. Disconnect the Spectrophotometer from the USB cable.
2. Login with Mixit: Sign in to Mixit
3. Download and open Instrument Manager: Instrument Manager Download Link
4. Download the Instrument Manager Driver from: Instrument Manager Driver Download
5. For AM3: Wi-Fi connection is not supported.
6. Download and install the necessary drivers and firmware updates:
• For AMV:
  • AutomatchicVision Driver 32 and 64 bits
  • Automatchic Vision Firmware Updater v20422546
• For AMV2:
  • AutomatchicVision2 Driver 32 and 64 bits
  • Automatchic Vision 2 Firmware Updater v11026256

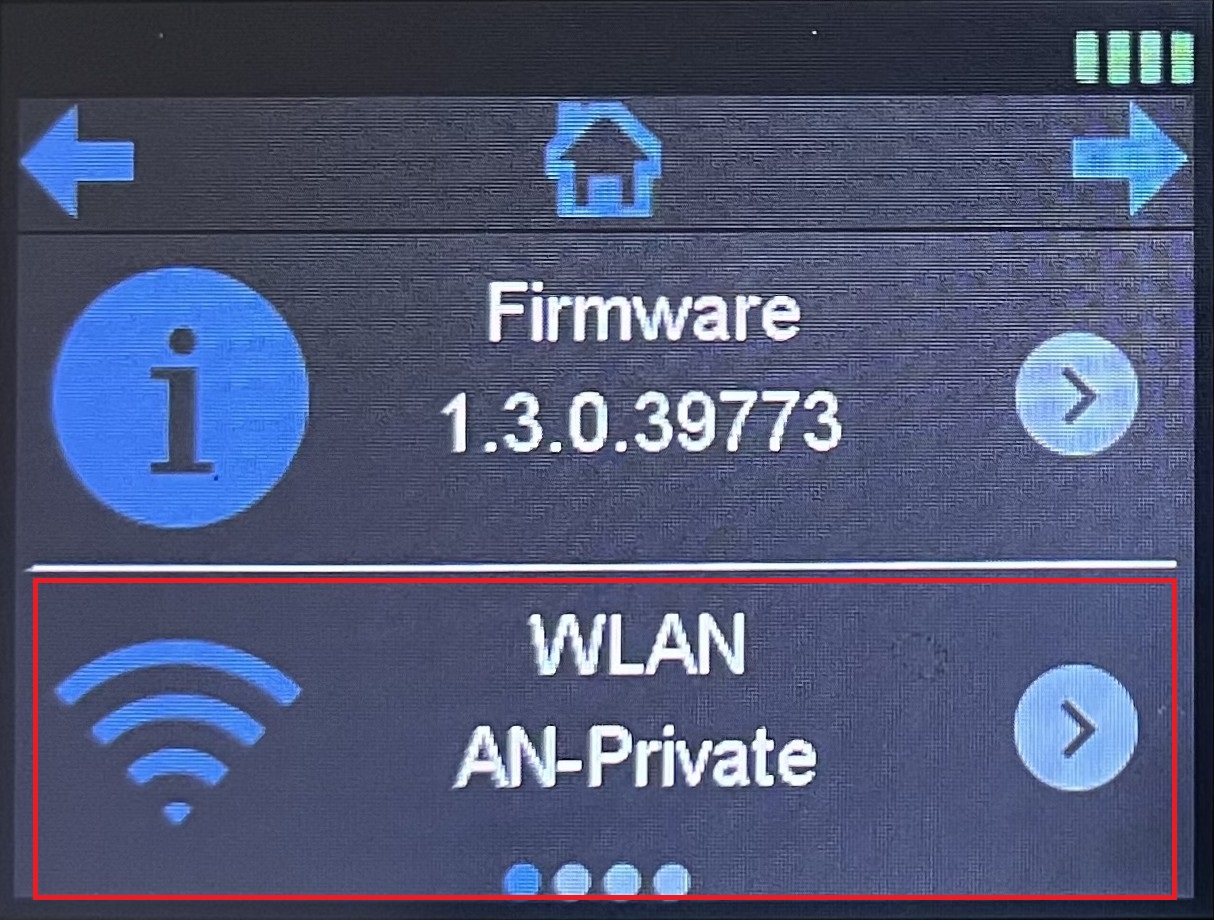

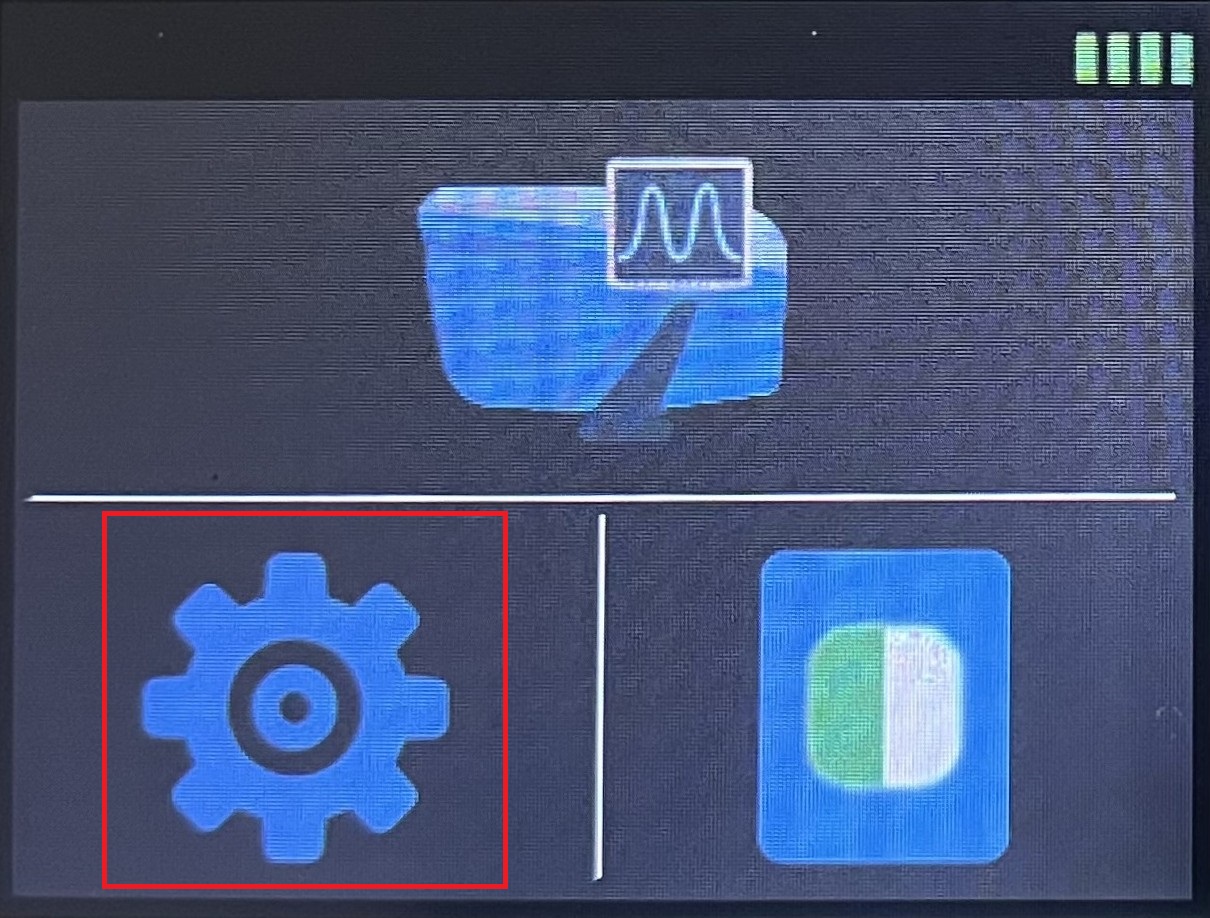

7. On the AMV/AMV2 device, navigate to Settings → WLAN.

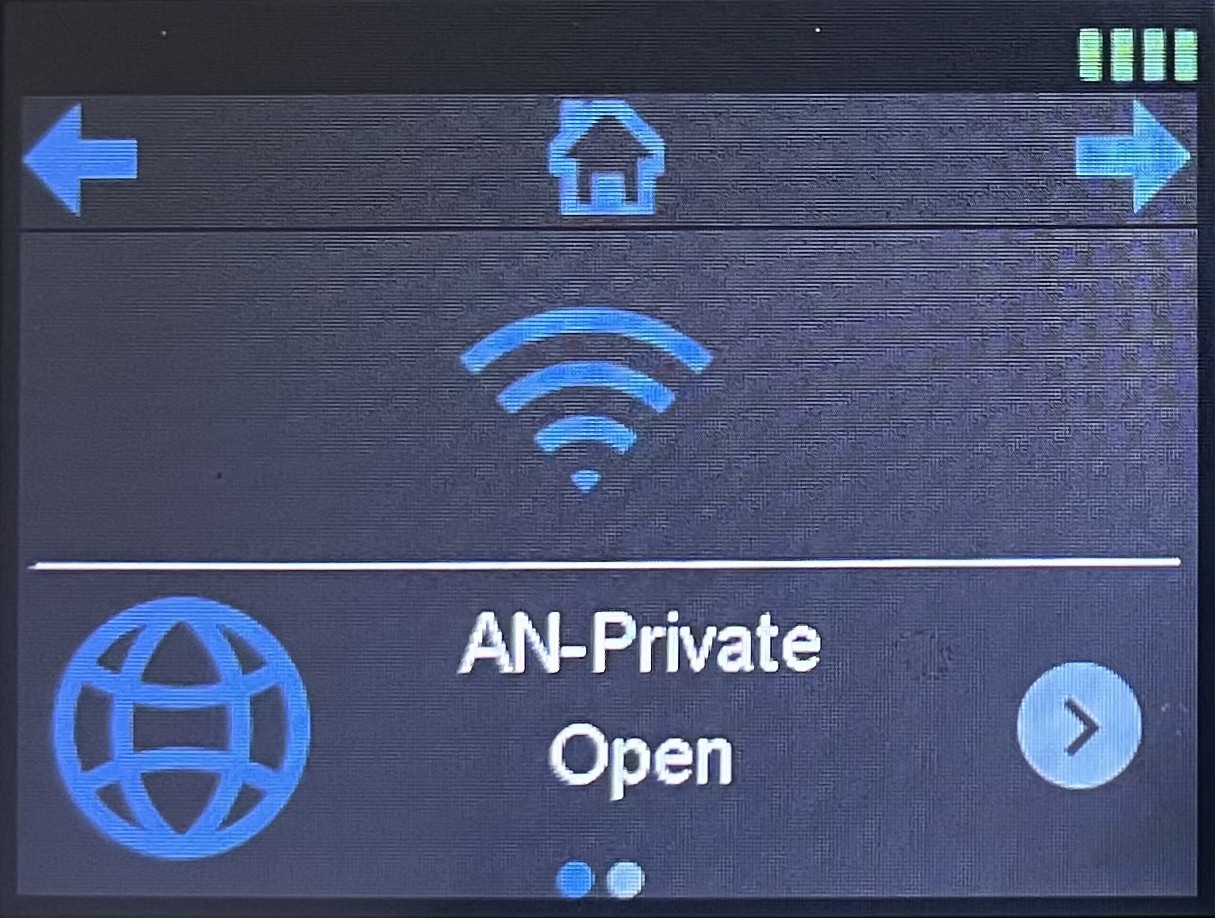

8. Open WLAN and click the Wi-Fi symbol until it turns blue.

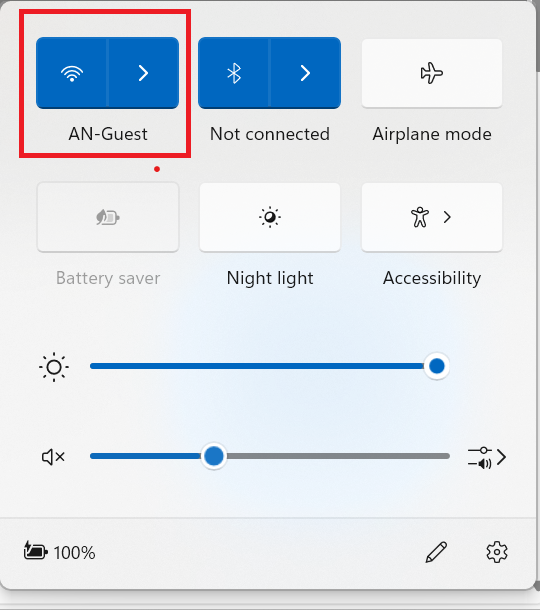

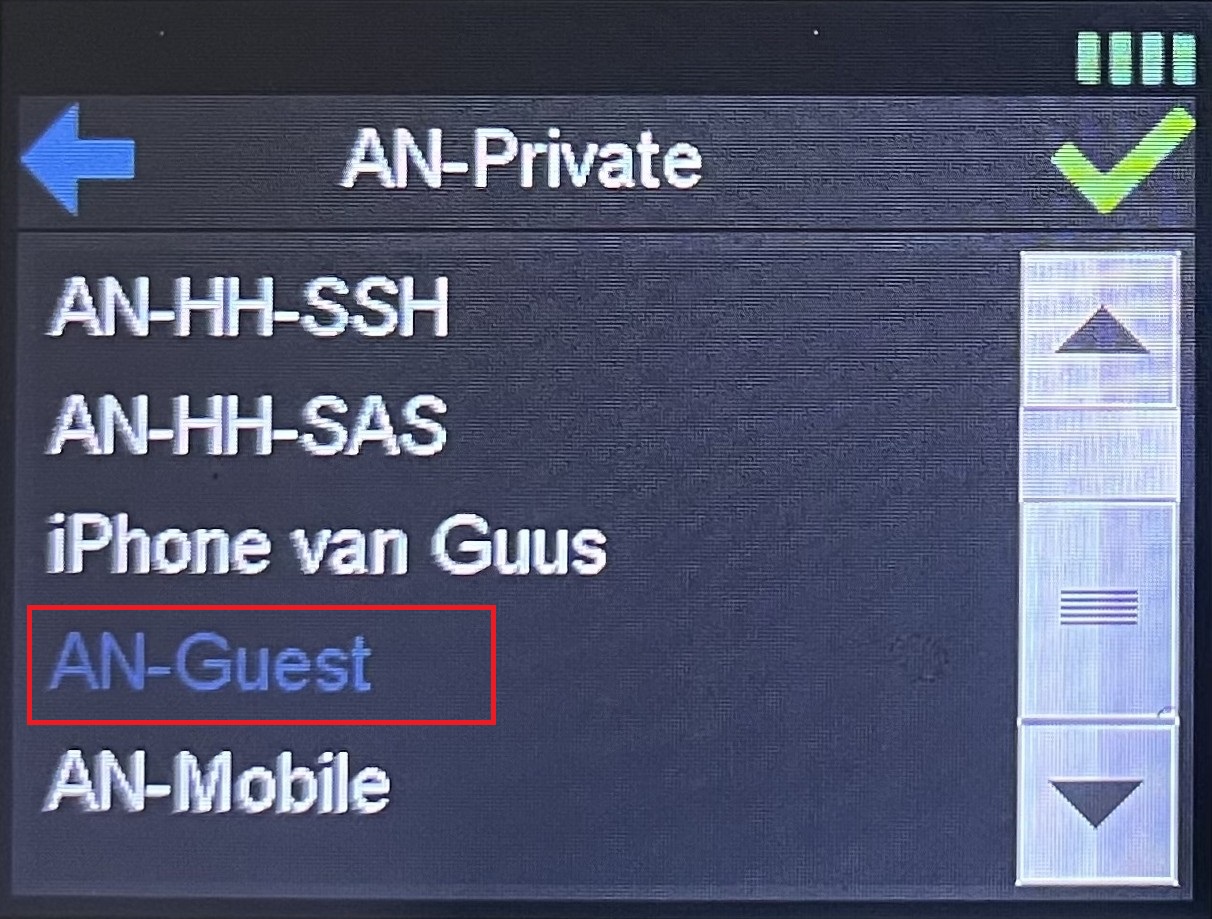

9. Go to Connection and select the same network connected to the laptop/computer.

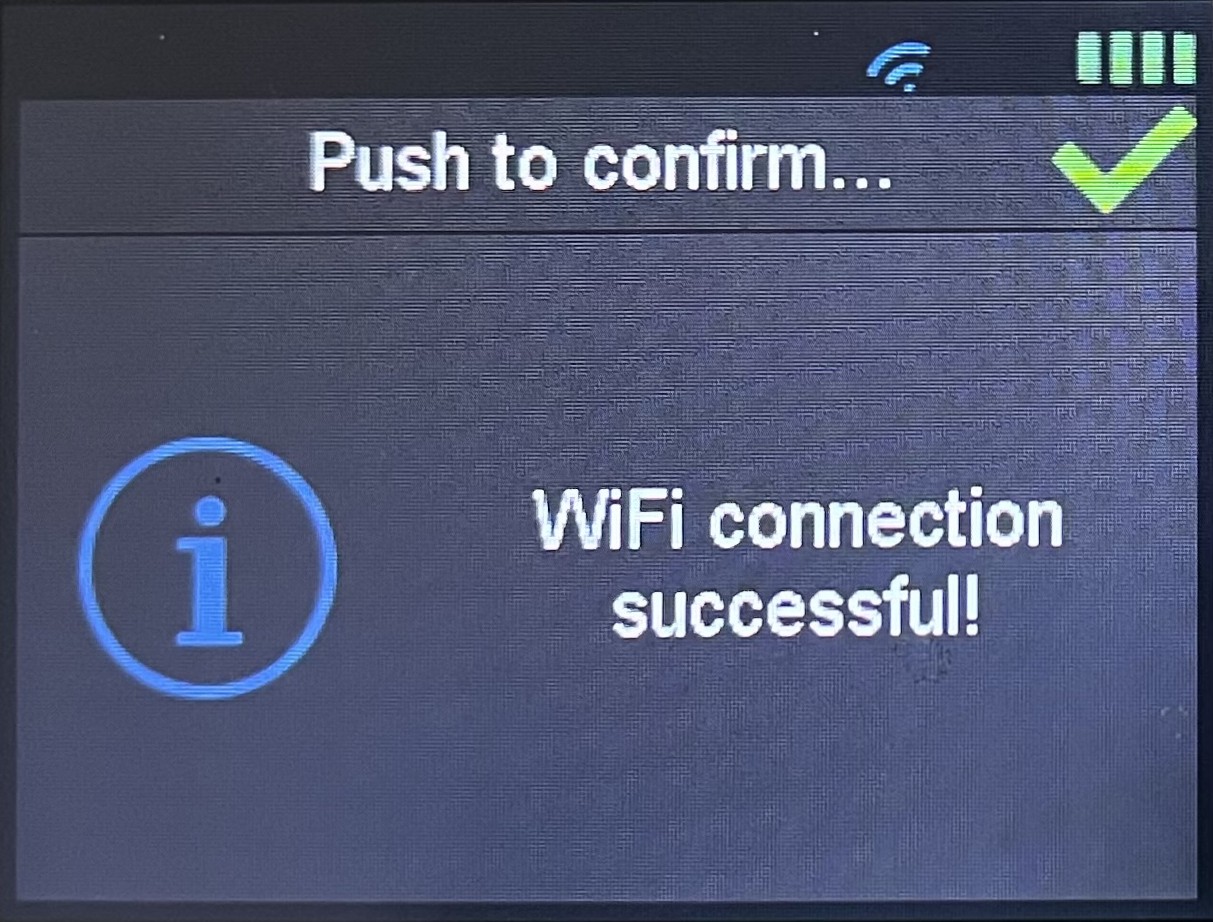

10. Connect to the network.

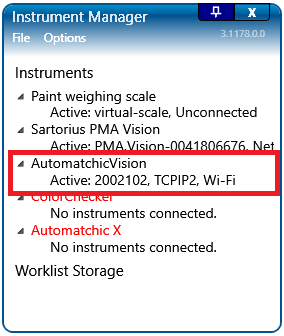

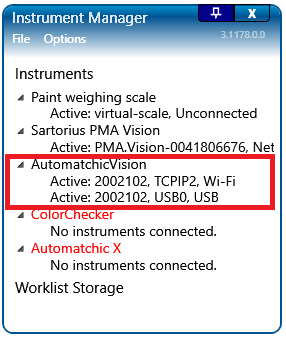

11. Once the connection is established, open Instrument Manager and ensure the Spectrophotometer is connected.

12. It is possible to have both USB and Wi-Fi connections working simultaneously, but the cable connection takes priority. Both connections will be visible and active in the Instrument Manager.
