This article will cover how to update the Firmware for the Automatchic Vision 1&2.
Which is the latest Firmware version for my device?
Automatchic Vision 1 FW Update
Automatchic Vision 2 FW Update
Which is the latest Firmware version for my device?
Currently the latest firmware version are:
- Automatchic Vision 1 FW version: v20422546
- Automatchic Vision 2 FW version: v14047297
Find the correct Firmware

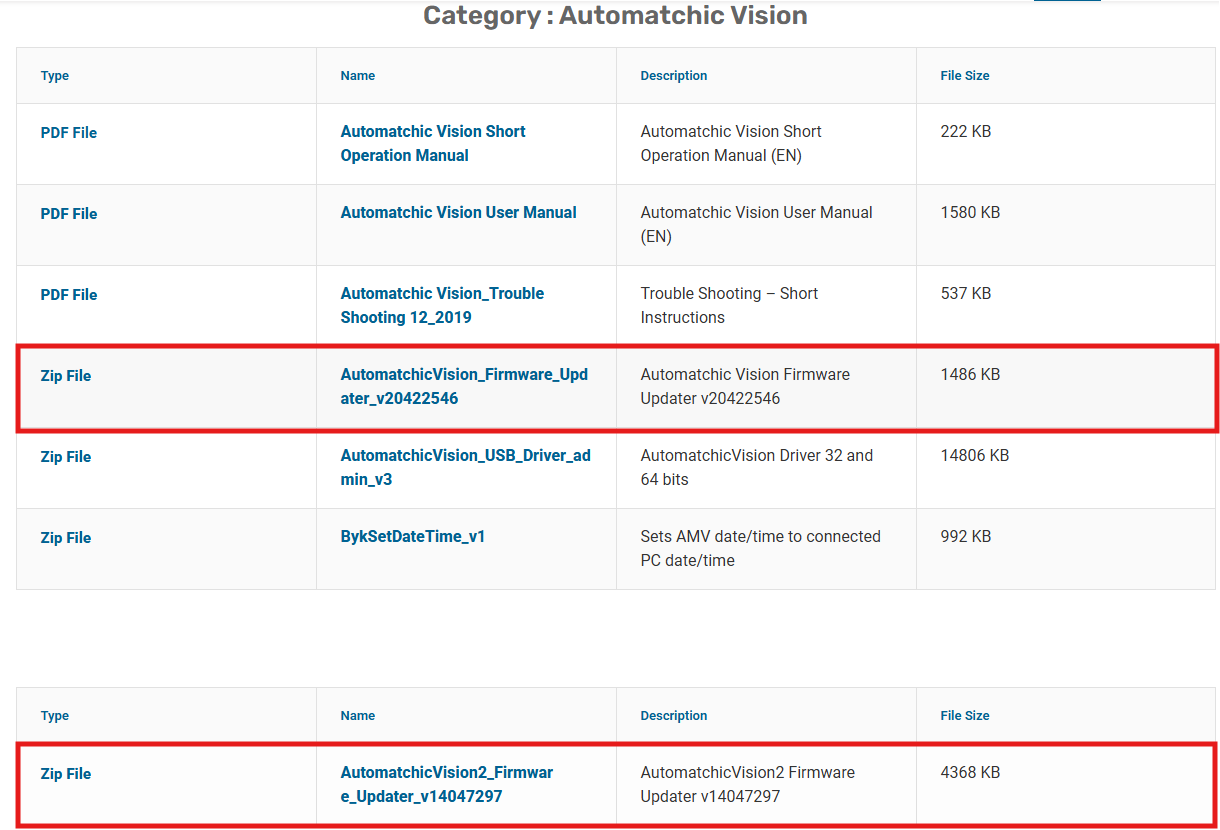

The latest firmware can be downloaded form the following link:
They are located under the Automatchic Vision category.
Automatchic Vision 1 FW Update
Before starting the update process, it is mandatory to close Instrument Manager. If Instrument Manager remains running, the Firmware updater tool will not be able to connect with the Spectro.
- Download the latest firmware update (see Find the correct Firmware)
-
Extract de folder and Run AutomatchicVision_Firmware_Updater_v20422546 as administrator (if possible).

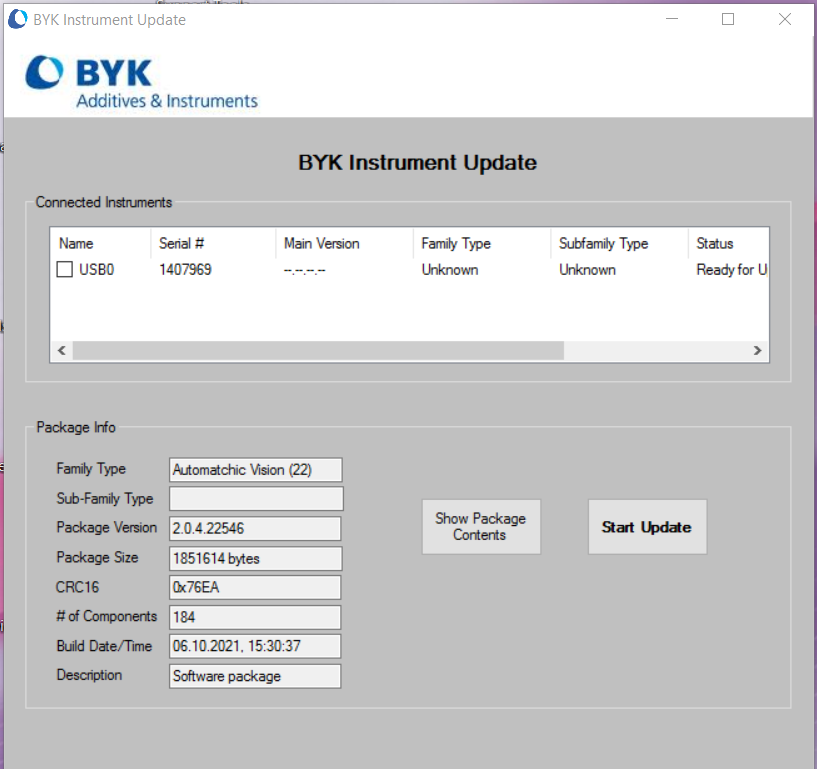

- Select the device and click Start Update
4. Wait until the devices is updated.
Note: Do not disconnect the device during the update. It could lead to a device failure, and ight require to be repaired at ByK Gardner.
Automatchic Vision 2 FW Update
Before starting the update process, it is mandatory to close Instrument Manager. If Instrument Manager remains running, the Firmware updater tool will not be able to connect with the Spectro.
- Download the latest firmware update (see Find the correct Firmware)
-

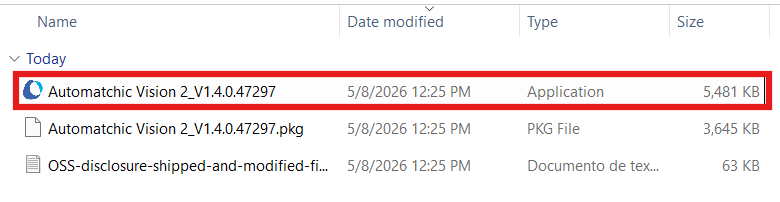

Decompress de folder and Run Automatchic Vision 2_V1.4.0.47297 as administrator (if possible).

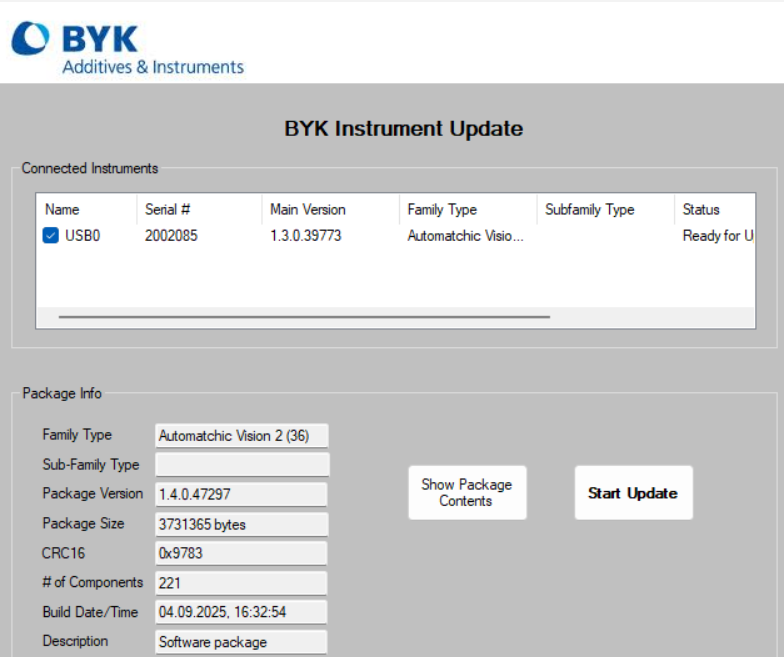

- Select the device and click Start Update
4. Wait until the devices is updated.
Note: Do not disconnect the device during the update. It could lead to a device failure, and ight require to be repaired at ByK Gardner.
