In MIXIT we have the option to make changes on how the labels are printed.

To use this feature go to > Settings > Label Generator

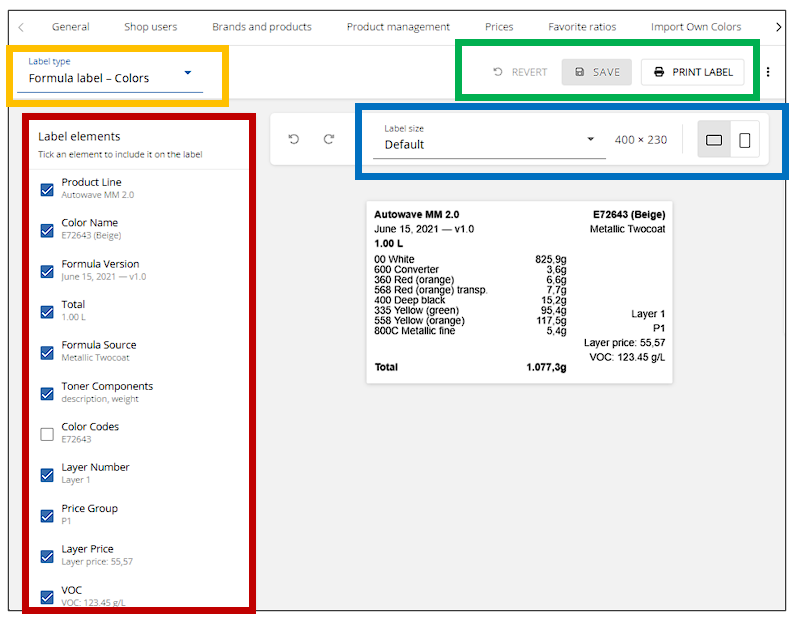

In the window which has opened you can see the options to make the changes

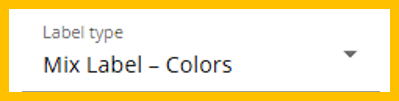

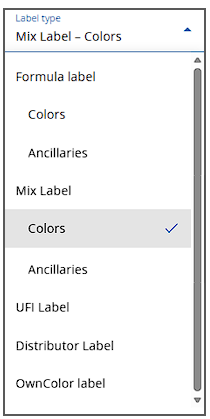

In this section you select the type of label you want to adjust, select the label you want to adjust from the drop down list, for example, I need to make changes to the Mix label for colors:

In this section you can select the elements you want to see or to hide on the selected label

In this section you can just preview some different sizes of labels, there is no changes made, to change the label size it needs to be done in the printer settings in Instrument Manager

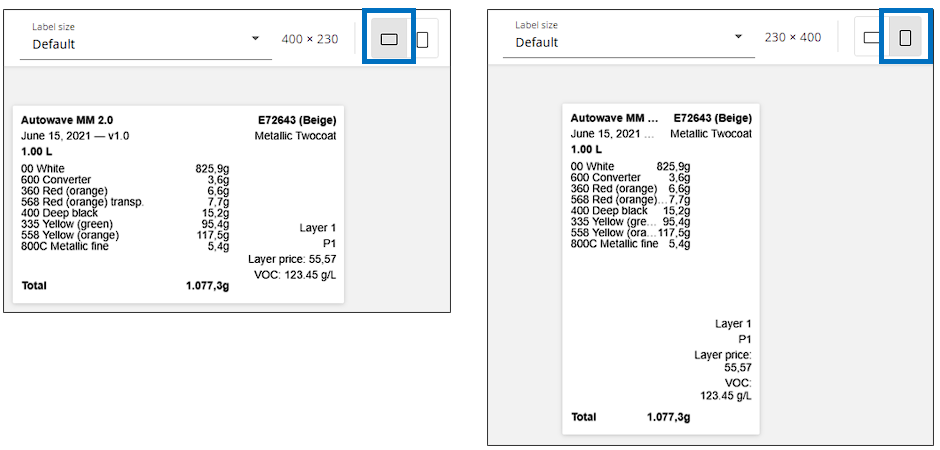

There is also the option to change the position of the label from horizontal to vertical

After clicking SAVE after you made the changes with consolidate your changes to the label, if you want to actually make a print of the current setting you can press PRINT LABEL, this will print the example on your printer.

If the settings are not what you expected than you press REVERT, this will undo all the settings made on the selected label.
